Trigger Cooker

1 1/4" mono input jack - input from foot pedal or piezo
2 1/8" mono output jacks - +12v pulse, velocity sensitive spike with tail
1 potentiometer - input sensitivity (full to no attenuation)
Source: Modification of Ray Wilson's "Drum Trigger for Sound Lab"
3D print eurorack panel on Tinkercad
Kicad implementation on GitHub

Gallery

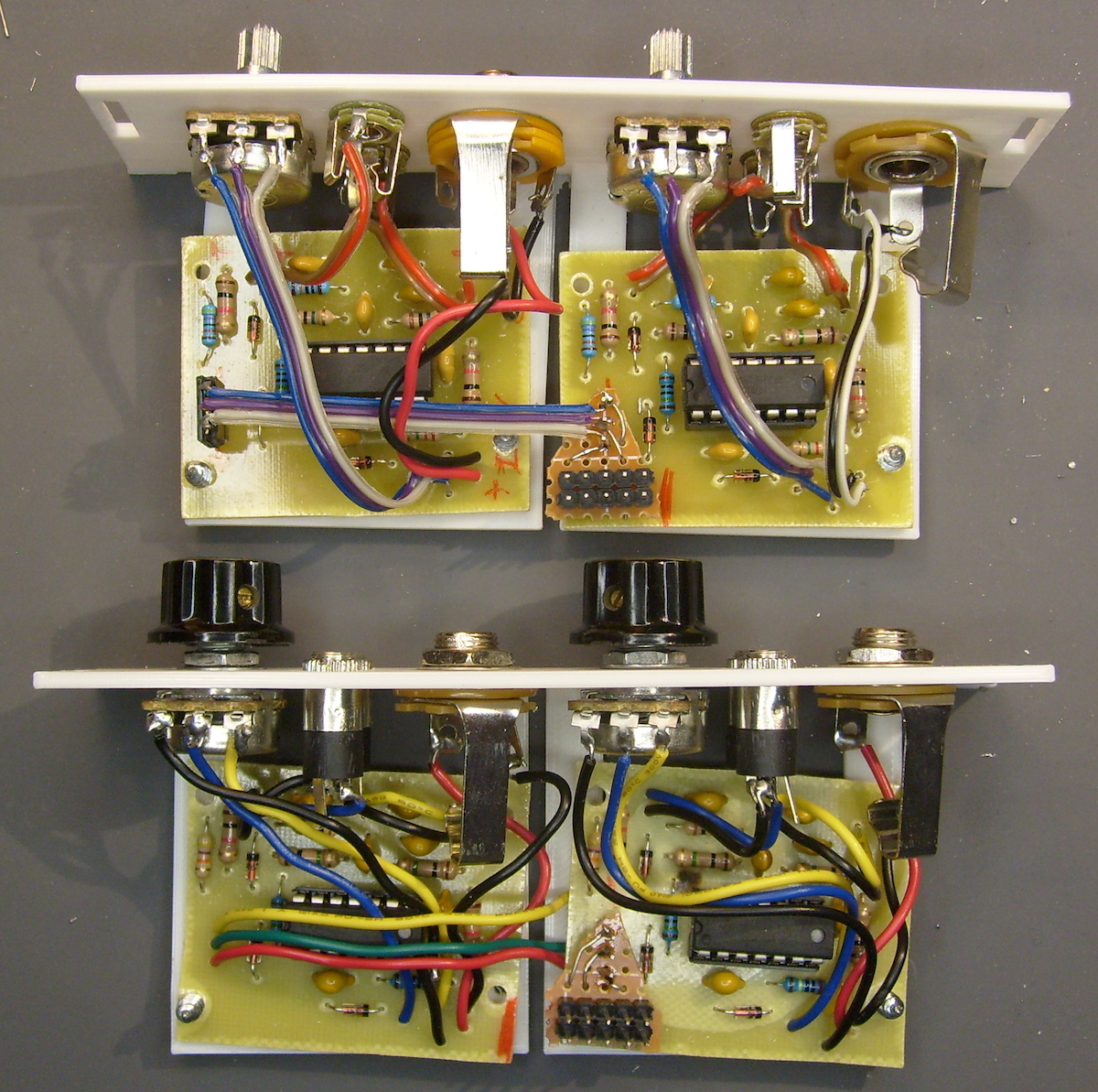

Four trigger cookers in two modules
Four trigger converters in two modules

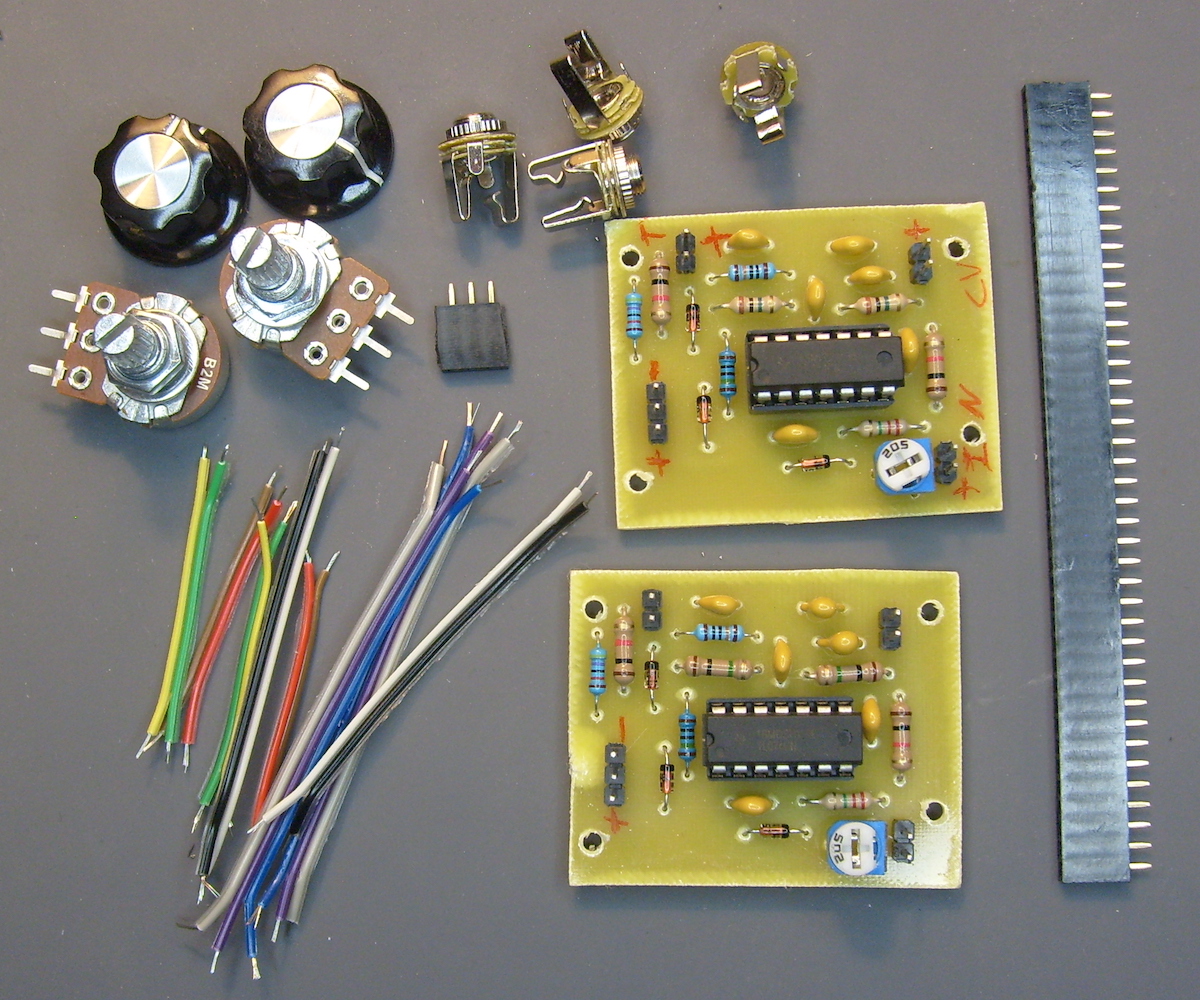

Parts to assemble front panel
Parts to assemble front panel
Front panel
Front panel

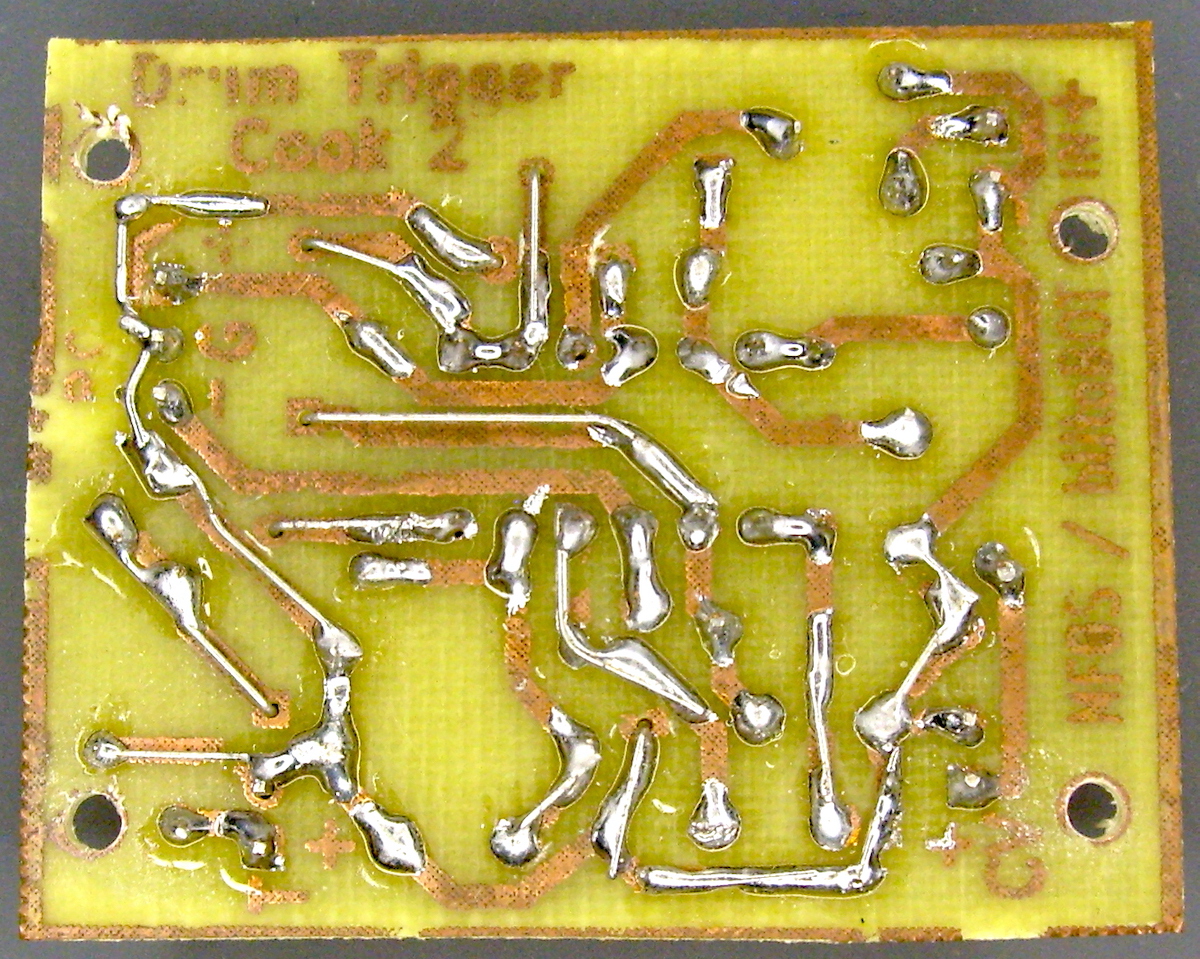

Back of PCB
Messy back of PCB

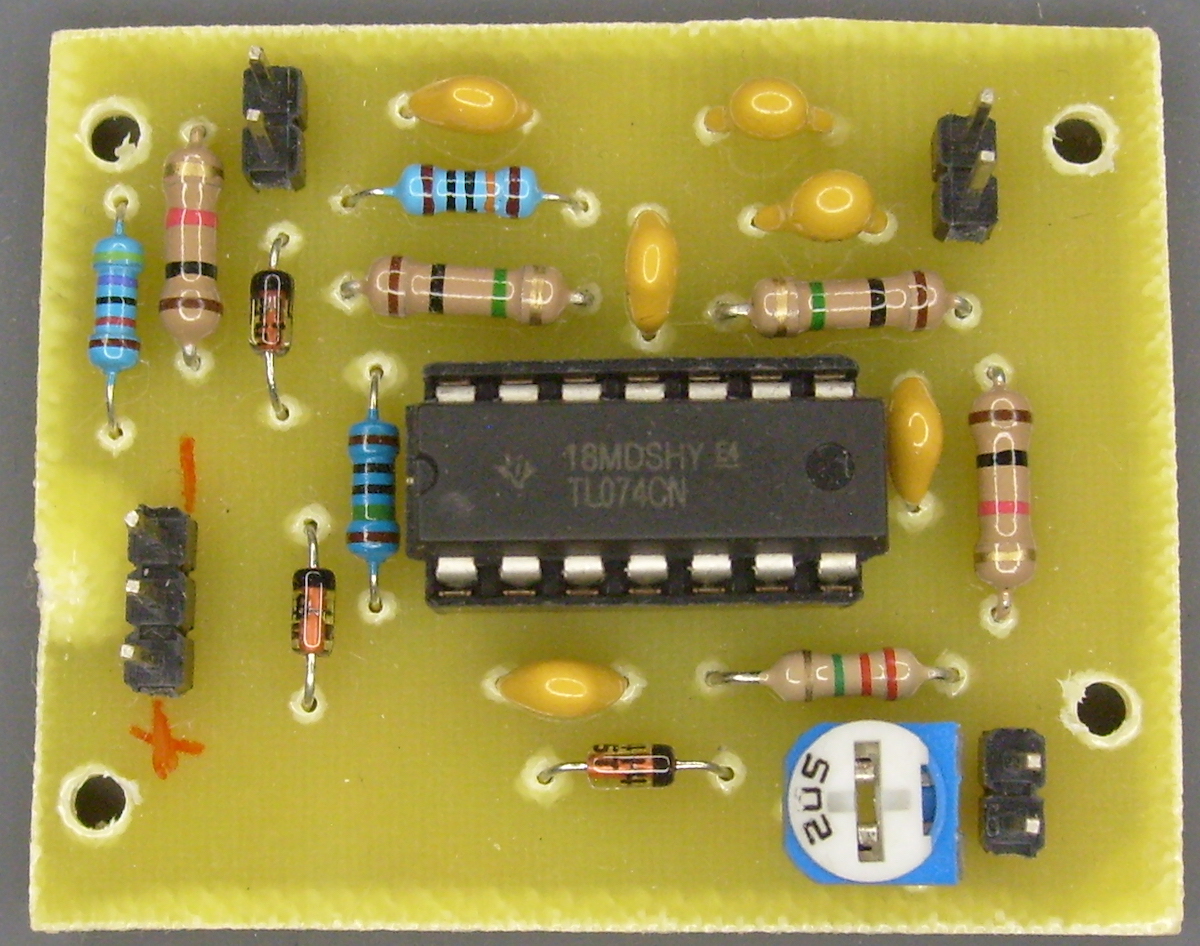

Front view of holes drilled in PCB
Front view of holes drilled in PCB

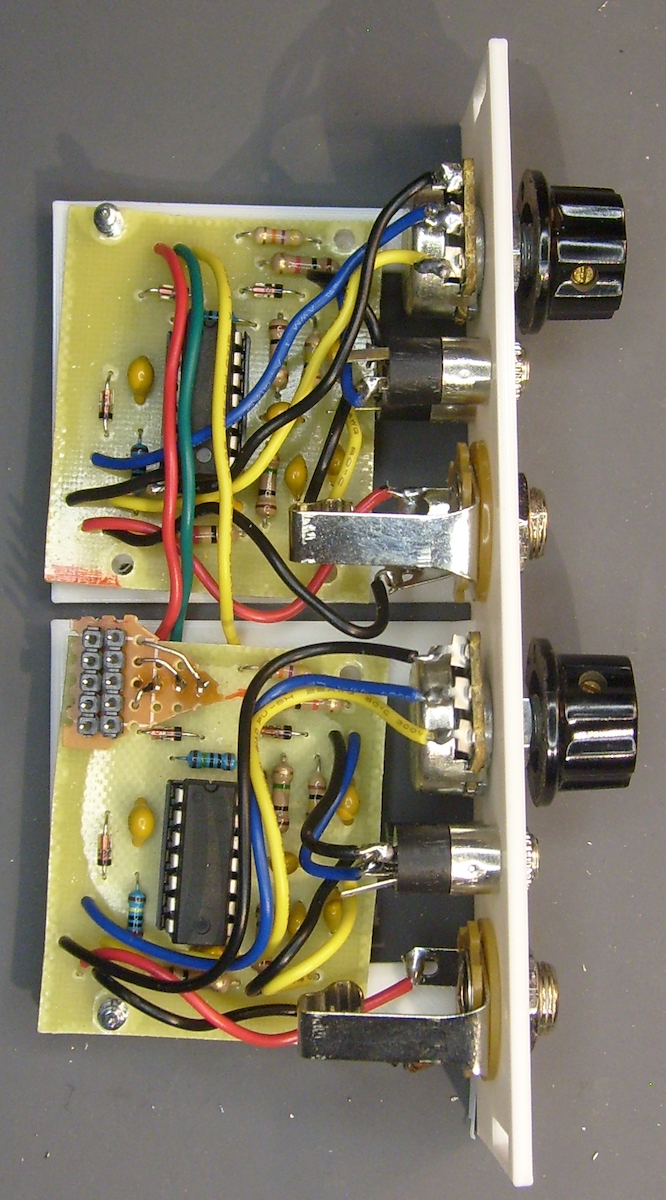

Side view of the assembled module
Side view of the assembled module
